CW
INDUSTRIAL GLAND
 |
CW Cable Gland Suitable for
SWA Cables.
Application indoor & outdoor whenever it is required to
provide sealing on cable outer sheath. CW glands are weatherproof
glands and can be used in corrosive conditions. When protected
with shroud. Positive armour locking, effective earth continuity,
increased mechanical strength.
OPTION : Other option available for cables
with braided armour double steel tape armour & flat armoured
cables.
Entry Threads : Metric Thread available as standard. Other
thread forms e.g. BS conduit, BSP, NPT and PG available on
request.
Sizes Available : M16 to M100
Accessories : Shroud, Lock Nuts and Earth Tags, SES entry
thread seal available.
Manufactured as per BS 6121 PT-1, 1989 from Brass as standard
material. |
| |
|

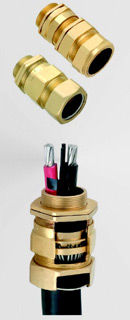

E1W IND. GLANDS
 |
E1W Cable Gland suitable for SWA cables.
Application indoor & outdoor, whenever it is required
to provide sealing on cable outer sheath and inner sheath.
E1W glands are weatherproof glands and can be used in corrosive
conditions when pretected with shroud. Positive armour locking
effective earth continuity, increased mechanical strength
and safety.
Entry Threads : Metric thread available as
standard. Other thread forms e.g. BS Conduit, BSP, NPT, and
PG available on request.
Sizes Available : M16 to M100
Accessories : Shrouds. Lock nuts, Earth Tags
and SES Entry Thread Seal are available.
OPTION : Other option available for, cables
with braided armour, double steel tape armour & flat armoured
cables.
Manufactured as per BS 6121 PT-1. 1989 from Brass as standard
material
|
|
|
